Nitinol bar/rod
Dia3.0mm-----50mm,length 500---3000mm
ASTM F2063
Polished surface
Name

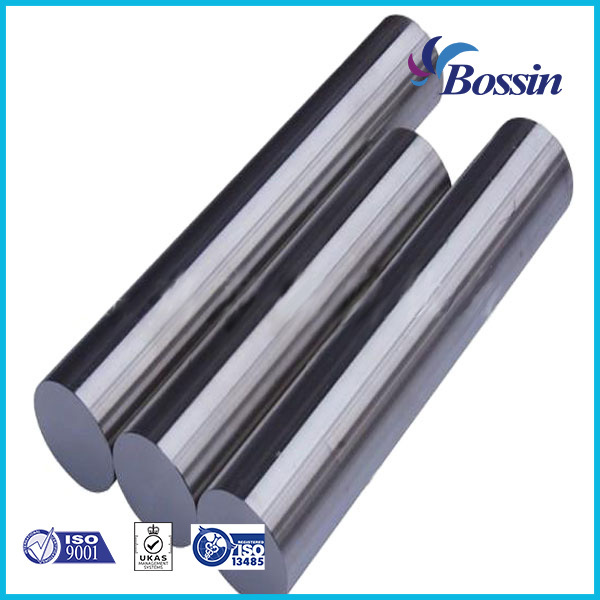

Nitinol Bars and Rods
Material
Mainly Nickel and Titanium, Medical Nitinol alloy
Shape Memory Alloy
Super elastic Nitinol
Fully Annealing AF
20℃~40℃ / 45℃~90℃/ -5℃~15℃/ 0℃~ -40℃/ Active Af 33℃±3℃/ As-Ms≤5℃/ As-Ms＜150℃
Standard
ASTM F2063-05 Q/XB1516 Customer specified or Industry Standard
Size
Bar: Dia3.0mm—50mm,Length 300mm---3000mm
Quality Assurance
End-to-end R&D and production process from Nickel-Titanium wire to finished Nitinol bar.
From the processes of smelting, forging, drawing, and heat treatment of raw materials,Bossin Metal can implement quality control across the entire production flow of nickel-titanium alloy products—from ingot casting to finished goods, get excellent comprehensive performance with controllable composition, surface quality, phase-change temperature and microstructure.
ISO Quality Management System,ISO13485 certificate
| Name | Grade | Transformation Temperature AF | Form |
| Shape Memory Nitinol Alloy | Ti-Ni-01 | 20 °C~ 40 °C | Wire,bar,plate |
| Ti-Ni-02 | 45 °C~ 90 °C | Wire,bar,plate | |
| Super elastic Nitinol Alloy | TiNi-SS | -5 °C~ 5 °C | Wire,bar,plate |
| Low Temperature Super elastic Nitinol Alloy | TN3 | <5 °C | Wire,bar,plate |
| TNC | <-15 °C | ||
| Medical Nitinol Alloy | TiNi-SS | 33 ± 3 °C | Wire,bar,plate |
| Narrow Hysteresis Nitinol Alloy | Ti-Ni-Cu | As-Ms ≤ 5 °C | Wire,bar |
| Wide Hysteresis Nitinol Alloy | Ti-Ni-Fe | As-Ms ≤ 150 °C | Wire, bar |
