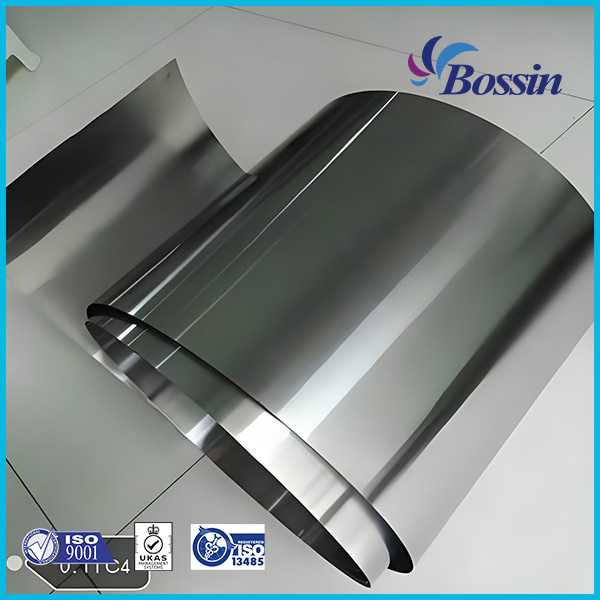

Super elastic Nitinol Coil, Strip
ASTM F2063
Thickness: 0.05---2.0mm, width:300--600mm
Surface:Polished bright,Acid Pickled,Black
Item
Super elastic Nitinol Coil,Roll,Strip
Fully Annealing AF
-5 °C±10℃
Standard
ASTM F2063 or Customer specified
Size
Thickness 0.05—2.0mm, commonly size 0.08mm,0.09mm,0.1mm, 0.2mm,0.3mm,0.4mm,0.5mm
Width: 600mm or as requirements
Quality Assurance
From the processes of smelting, forging, drawing, and heat treatment of raw materials,Bossin Metal can implement quality control across the entire production flow of nickel-titanium alloy products—from ingot casting to finished goods, get excellent comprehensive performance with controllable composition, surface quality, phase-change temperature and microstructure.
ISO Quality Management System,ISO13485 certificate
Chemical composition
|
element |
mass fraction（%） |
|
medical |
|
|
nickel (Ni) |
54.5~57.0 |
|
carbon（C） |
≤0.040 |
|
cobalt（Co） |
≤0.050 |
|
copper（Cu） |
≤0.010 |
|
chromium（Cr） |
≤0.010 |
|
hydrogen（H） |
≤0.005 |
|
Iron（Fe） |
≤0.050 |
|
niobium（Nb） |
≤0.025 |
|
nitrogen（N） |
≤0.005 |
|
oxygen（O） |
≤0.040 |
|
titanium（Ti） |
Balance |
