GR5 Gr5 Eli GR7 GR9 GR12 GR23
Range from Dia0.03mm to Dia6.0mm
Item Name

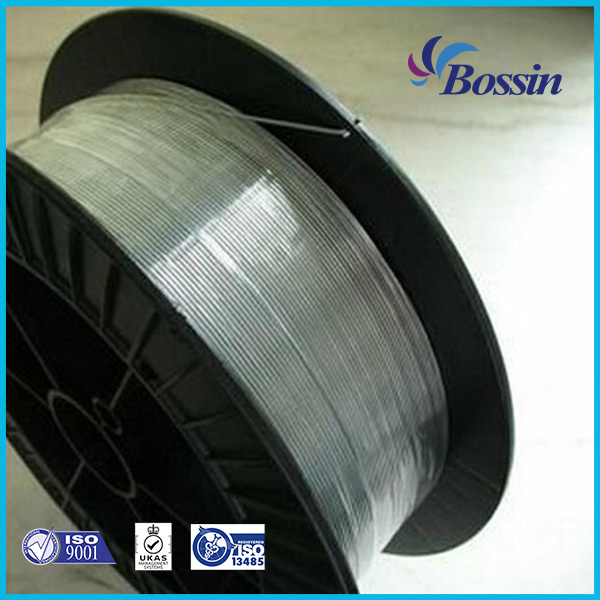

Titanium Alloy Wire
Grade
Gr5(Ti-6AL-4V), Gr7, Gr9, Gr12, Gr23 etc.
Titanium Grade 5 (Material-No. 3.7165 and 3.7164)
Titanium Grade 7 (Material-No. 3.7235)
Titanium Grade 9 (Material-No. 3.7194)
Titanium Grade 11 (Material-No. 3.7225)
Titanium Grade 12 (Material-No. 3.7105)
Titanium Grade 23 (Material-No. 3.7165)
Standard
ASTM B863, AWS A5.16,ASTM B348, ASTM F67, ASTM F136,
AMS4951, AMS4954, AMS4956
Specification
Dia0.03—Dia6.0mm
Type
Coil, Spool, Straight, Cut to length
Surface
Polished, Black oxide, Peeled, Pickling
Weight each
10—200KG for each coil or spool or as your required
| GRADE NAMES | UNS | WIRE | BAR | SHEET | PLATE | TUBR | PIPE | FORGING |
| Ti Grade 1 | R50250 | √ | √ | √ | √ | √ | √ | |
| Ti Grade 2 | R50400 | √ | √ | √ | √ | √ | √ | √ |
| Ti Grade 4 | R50700 | √ | √ | √ | √ | √ | ||
| Ti Grade 5 (6Al 4V) | R56200 | √ | √ | √ | √ | √ | ||
| Ti Grade 7 (0.2Pd) | R52400 | √ | √ | √ | √ | √ | ||
| Ti Grade 9 (3Al 2.5V) | R56320 | √ | √ | √ | √ | √ | ||
| Ti Grade 12 (0.3Mo 0.8Ni) | R53400 | √ | √ | √ | √ | |||
| Ti Grade 23 (6Al 4V Eli) | R56401 | √ | √ | √ | √ | √ | ||
| Ti 15V 3Cr 3Sn 3Al | √ | √ |
